NECOFLO-G5 Filler | Powder Filler | High Speed

Volumetric powder granular filling machine with fill weight control for filling into rigid containers.

Nalbach Engineering’s NECOFLO G5.5 filler saves money with dramatically reduced maintenance & downtime and improved fill accuracy through automatic weight control

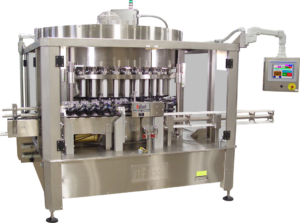

The NECOFLO-G5.5 Filler Series is specially designed for accurate, high speed filling of expensive powders or granules such as instant coffee and soluble tea.  The G5.5 combines no-lift container handling with Nalbach’s patented “bottom up” filling technique.

Several built-in scales are provided so that product density can be dynamically monitored.  Fill volumes (weights) are then automatically adjusted to compensate for density shifts.  The G5.5 will fill any rigid plastic, glass, tin plate or composite container.

Product Benefits
  • Fill Accuracy: To ±1/2% for a constant density product. Ask us for fill accuracy ratings on your product.
  • Automatic Weight Control: Provides for fill weight adjustment while the filler is in operation.
  • "Bottom-Up" Filling: The combination of Nalbach's patented fill tube and fill tube sleeve creates a telescopic measuring flask that provides dust-free filling and better fill accuracy for most products.
  • Gentle Product Handling: Minimizes product breakdown/separation.
  • Unitized "Quick Change" Parts: This allows a complete "no tools" container changeover in 30 minutes.
  • Versatility: The same NECOFLO-G5.5 (with proper change parts) can fill a range of other container sizes.
  • Near Zero Maintenance: This ease of maintenance is achieved through simple, yet rugged design and construction.
  • Quieter Operation: Non-metallic container handling parts are used wherever feasible.
  • Totally Enclosed: Our standard "Dust Hood-Safety Enclosure" includes large windowed access doors which are electrically interlocked.
  • "No-Container, No-Fill": This is accomplished by automatically stopping the machine when there is an interruption in the supply of containers. This simple system eliminates a hard-to-clean shut-off mechanism on each filling head. (A "powder filler" cannot be allowed to operate without containers to fill, as this action would result in degradation of the product.)
  • Vibration Systems: Tailored to Your Product Unlike other powder fillers, the NECOFLO-G5.5 is tailored to your product with bottom, side, or step (high impact) vibration systems.
Maximum production rates

Up to 480 Fills Per Minute

Product Applications
  • Freeze Dried Coffee
  • Agglomerated Instant Coffee
  • Spray Dried Instant Coffee
  • Pure Instant Tea
  • Other Non-Abrasive Products
Request a Quote
Request a Quote



Product Video(s)

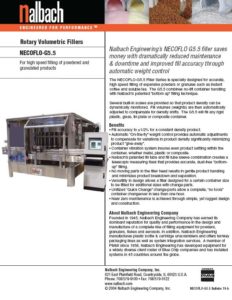

Product brochure(s)
